Ecosystem

Austin's MOJO output can be consumed by a number of tools, or by your own, with the help of the austin-python package.

Agentic Workflows

Coding agents can profile Python code with Austin and reason about the results on their own. There are two ways to give an agent access to Austin profiles:

	VS Code MCP server	`austin-query`
Best for	Interactive sessions in the editor, where you and the agent look at the same flame graph	Headless use: terminal agents, scripts and CI
Requires	The Austin VS Code extension	The `austin-python` package
Agents	GitHub Copilot out of the box, or any MCP client, like Claude Code or Cursor	Any agent that can run shell commands
Output	Structured MCP tool results, plus flame graph actions	Text tables, or JSON with `--json`

In both cases, the agent works from the same questions you would ask: what the hottest functions are, who calls them, which call stacks are the heaviest, how busy the garbage collector is, and what each asyncio task was doing.

IDE Extensions

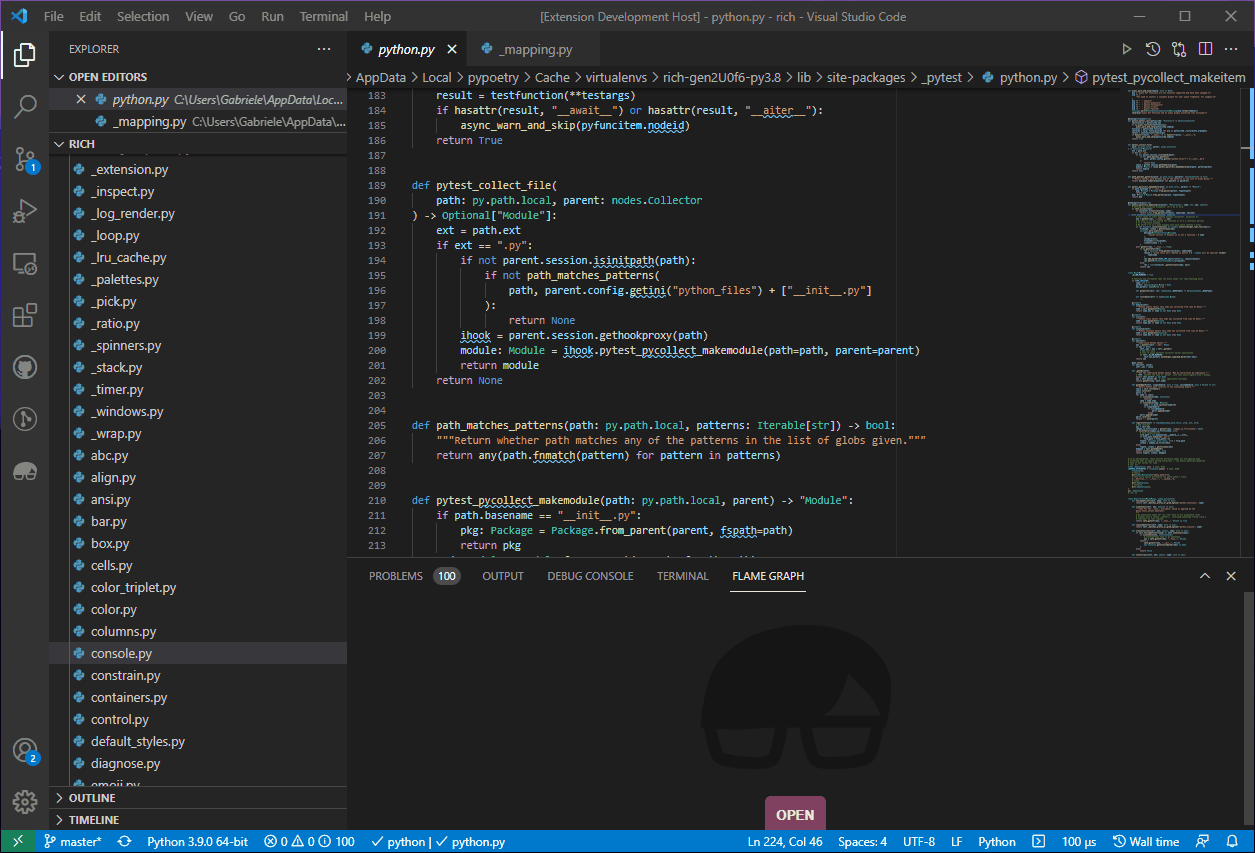

It is easy to write your own extension for your favourite text editor. This, for example, is a demo of the Visual Studio Code extension that highlights the most hit lines of code straight into the editor

Austin VS Code extension demo

The extension opens .mojo files directly, and renders interactive flame graphs, source-level annotations and thread breakdowns, with support for the asyncio task view of profiles collected on CPython 3.14 or later.

MCP Server

The Austin VS Code extension comes with an MCP server that exposes the profile loaded in the editor to AI agents. The server starts automatically when the extension activates, and offers two kinds of tools.

The data tools let the agent read the loaded profile:

Tool	Description
`get_top`	Top functions, sorted by own time
`get_call_stacks`	Process, thread and function call-stack tree, with an optional threshold to prune branches that contribute little
`get_metadata`	Source file, sampling mode, interval and total sample count
`get_gc_data`	Per-thread garbage collector time, and the functions on the stack during collections
`get_task_traces`	`asyncio` task trees, with each task's coroutine, location, running and total time

The action tools let the agent show its findings in the flame graph:

Tool	Description
`load_profile`	Load a profile file and open it in the flame graph view
`focus_flamegraph`	Zoom the flame graph to a call-stack or task node
`search_flamegraph`	Highlight every frame whose function name contains a term

This way, an agent can profile your code, load the result, explain where the time goes, and point you to the relevant part of the flame graph, all within the same chat session.

In VS Code, the server is registered with the built-in MCP client, and the tools are available in GitHub Copilot's agent mode with no configuration. For other agents with their own MCP client, like Claude Code or Cursor, run the Austin: Generate .mcp.json command from the Command Palette. This writes a .mcp.json file to the workspace root that points the agent to the server. To share this file with your team, set the austin.mcp.port setting to a fixed port before generating it. The extension's documentation has all the details.

Querying Profiles

The austin.query module of the austin-python package answers the most common questions about a profile, like which functions are the hottest, what the sampled stacks are, or who calls a given function:

from austin.query import ProfileQuery

q = ProfileQuery.from_file("profile.mojo")

print(q.top(10))                       # hottest functions
print(q.callers("db.py:execute"))      # who calls execute
print(q.filter(thread="main").tree())  # call tree of the main thread

Every result renders as a text table when printed, and can be converted to JSON-ready data with to_dict(). For asyncio profiles (CPython 3.14 or later), q.tasks() shows the task trees, q.task_stacks("worker-0") where a task was running and awaiting, and q.filter(task="worker-0") narrows any query down to the samples in which a task was running.

The same queries are available from the command line with the austin-query tool, which makes them easy to use for any agent that can run shell commands. A typical session goes from an overview of the profile down to the code that needs attention:

austin-query profile.mojo summary          # mode, metrics and threads
austin-query profile.mojo top -n 20        # hottest functions
austin-query profile.mojo callers execute  # who calls a hot function
austin-query profile.mojo stacks -n 5      # heaviest full stacks
austin-query profile.mojo tasks            # asyncio task trees

Add --json to any command for machine-readable output. Run austin-query --help for the syntax that selects functions and tasks, and for the suggested workflow. Pointing an agent to austin-query --help is usually all it takes for it to profile and analyse your code on its own:

austin -o profile.mojo python myscript.py
austin-query profile.mojo top -n 10 --json

Note

The query API and the austin-query tool are available since austin-python 2.5.0. Install or upgrade with pip install -U austin-python.

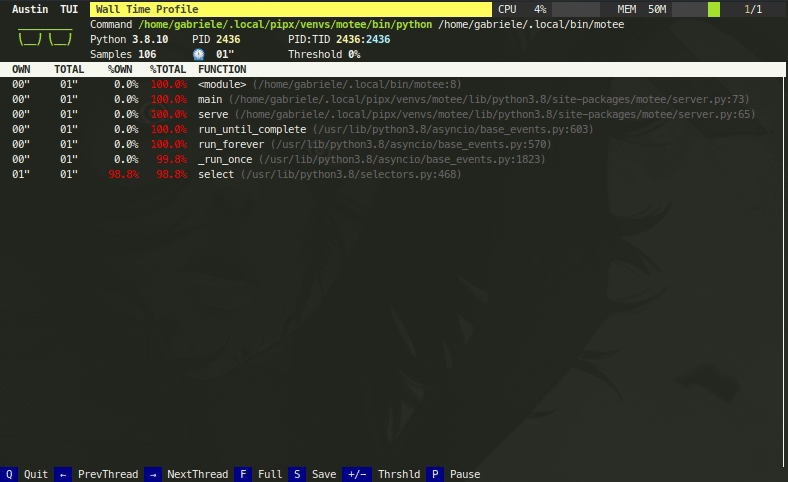

Austin TUI

The Austin TUI is a text-based user interface for Austin that gives you a top-like view of what is currently running inside a Python application. It is most useful for scripts that have long-running procedures as you can see where execution is at without tracing instructions in your code. You can also save the collected data from within the TUI and feed it to Flame Graph for visualisation, or convert it to the pprof format.

If you want to give it a go you can install it using pip with

pip install austin-tui --upgrade

and run it with

austin-tui [OPTION...] command [ARG...]

with the same command line as Austin. Please note that the austin binary should be available from within the PATH environment variable in order for the TUI to work.

Important

The TUI is based on python-curses. The version included with the standard Windows installations of Python is broken so it won't work out of the box. A solution is to install the wheel of the port to Windows from this page. Wheel files can be installed directly with pip, as described in the linked page.

Austin TUI

Austin Web

Austin Web is a web application that wraps around Austin. At its core, Austin Web is based on d3-flame-graph to display a live flame graph in the browser, that refreshes every 3 seconds with newly collected samples. Austin Web can also be used for remote profiling by setting the --host and --port options.

If you want to give it a go you can install it using pip with

pip install austin-web --upgrade

and run it with

austin-web [OPTION...] command [ARG...]

with the same command line as Austin. This starts a simple HTTP server that serves on localhost by default. When no explicit port is given, Austin Web will use an ephemeral one.

Please note that the austin binary should be available from within the PATH environment variable in order for Austin Web to work.

Austin Web

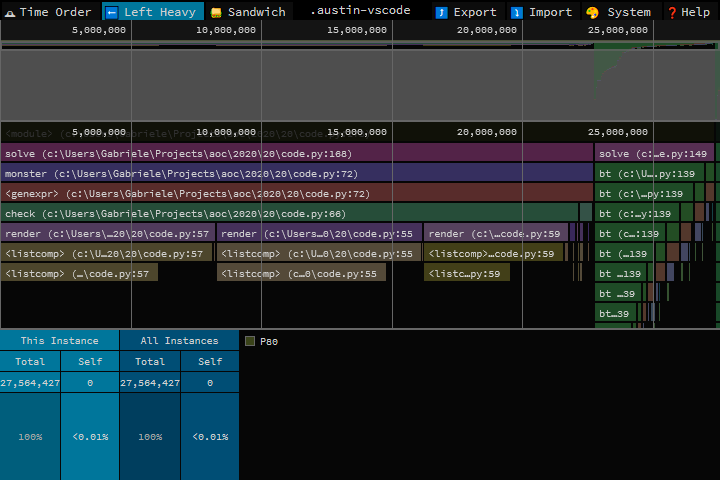

Speedscope

Austin's MOJO output can be converted to the Speedscope JSON format with the austin2speedscope utility that comes with the austin-python package.

If you want to give it a go you can install it using pip with

pip install austin-python --upgrade

and run it with

austin2speedscope [-h] [--indent INDENT] [-V] input output

where input is a file containing the output from Austin and output is the name of the JSON file to use to save the result of the conversion, ready to be used on Speedscope.

Speedscope

Google pprof

Austin's format can also be converted to the Google pprof format using the austin2pprof utility that comes with austin-python. If you want to give it a go you can install it using pip with

pip install austin-python --upgrade

and run it with

austin2pprof [-h] [-V] input output

where input is a file containing the output from Austin and output is the name of the protobuf file to use to save the result of the conversion, ready to be used with Google's pprof tools.
